Features
- Download clockings and hours via a USB thumb drive, via the web interface or link the clock to TNA5

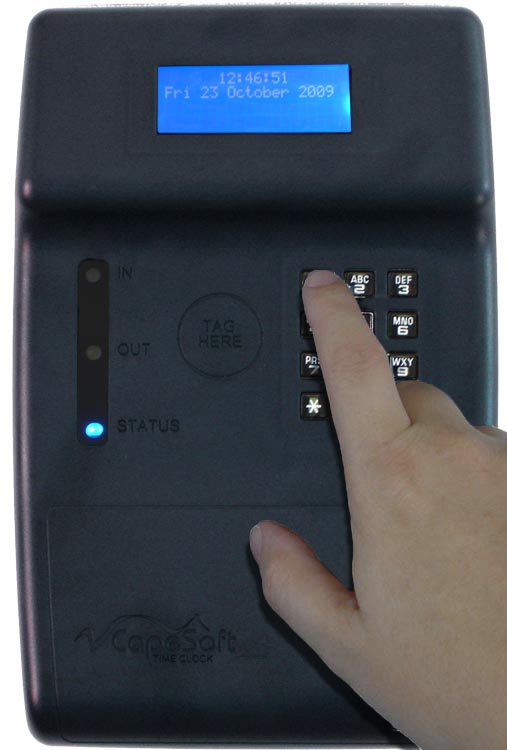

- Integrated keypad and proximity reader.
- Three relays to trigger sirens or electronic door locks.
- Strong, but light plastic mould.
- Supports Time and Attendance, Access Control and Job Costing*.
*Job Costing requires TNA software.
Specifications
| Available readers | Integrated keypad and proximity reader | ||
| Proximity reader specifications | Read range: +/- 12cm Supported Data Format: ASCII, Wiegand26 and Magnetic ABA Track2 Card Format: EM 4001 or compatible |
||
| Display | Four line, 20 character white font on blue background PLED | ||
| Memory | Stores up to 50 000 clockings | ||
| Communications | TCP/IP 10/100 Mb/s | ||
| Outputs |

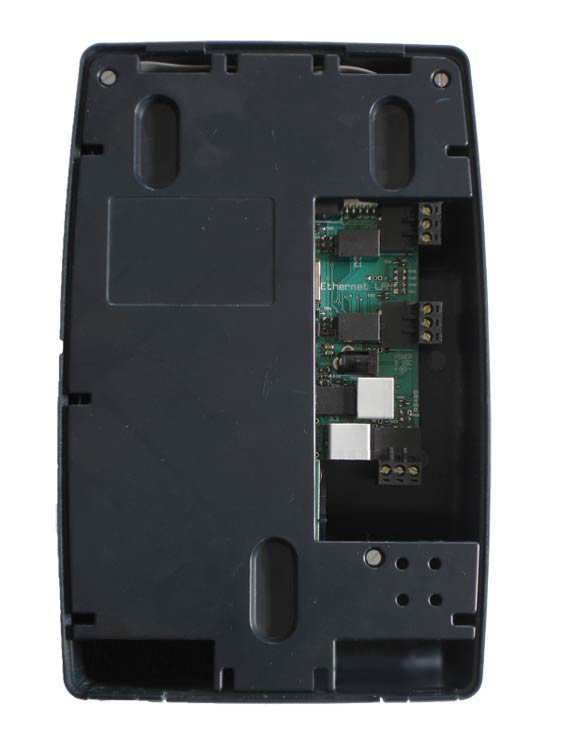

3 x Relays* 2 x RS485 port for connection to child clocks 1 x External USB 1.1 port RJ-45 Ethernet connector 6-pin MiniDIN Connector Barrel power jack 3 x additional reader connectors Please note: All outputs are located inside the casing unless specified. |
||
| Operating temperature | -15 to +70 °C | ||
| Power Supply | 5V DC (supplied) | ||
| IP rating | IP-50 | ||
| Housing | Plastic Mould | ||
| Approximate dimensions | 153mm (w) x 238mm (h) x 58mm (d) | ||
| Weight | 730 gram | ||
* The relays are rated for 12V DC. Please use a siren interface if your siren or bell is rated higher.
Gallery
Click on an image to enlarge the gallery.
 |
 |
 |
 |
