Features
- Download clockings and hours via a USB thumb drive, via the web interface or link the clock to TNA5

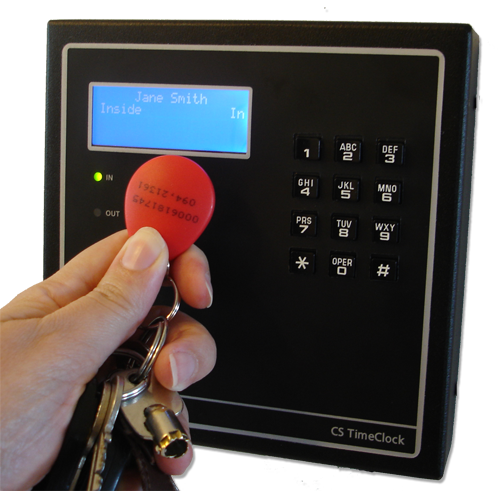

- Integrated keypad reader and proximity reader.
- Relay triggers unlimited sirens or can be used with Access Control.
- Supports Time and Attendance, Access Control and Job Costing*.
- Built in support for up to three additional child clocks.
- 1 mm thick epoxy coated steel housing is well suited for factories or mining sites.
*Job costing requires TNA software.
Specifications
| Available readers | Integrated keypad reader and proximity reader |
| Proximity reader specifications: | Read range: +/- 12cm Supported Data Format: ASCII, Wiegand26 and Magnetic ABA Track2 Card Format: EM 4001 or compatible |

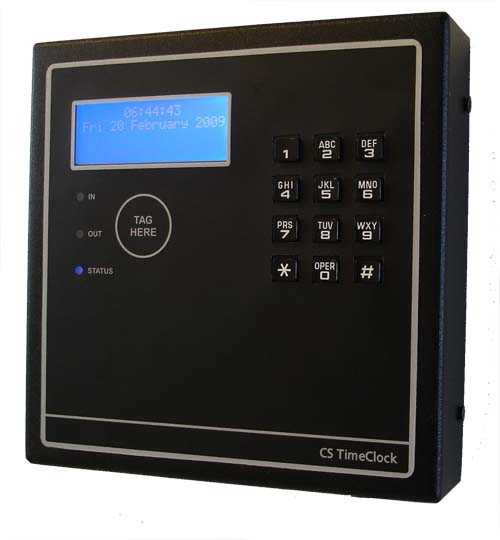

| Display | Four line, 20 character white font on blue background PLED |
| Memory | Stores up to 10 000 clockings |
| Communications | TCP/IP 10/100 Mb/s |

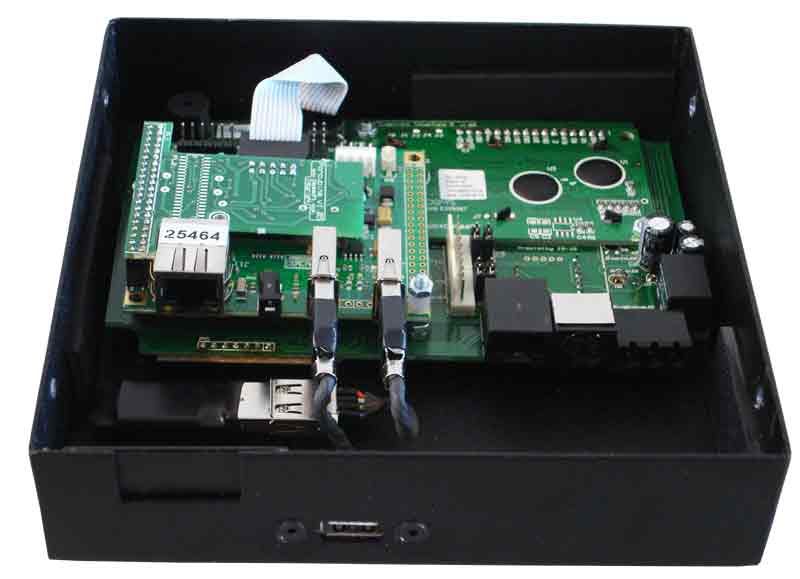

| Outputs | Siren relay* RS485 port for connection to child clocks 1 x External USB 1.1 ports RJ-45 Ethernet connector 6-pin MiniDIN Connector Barrel power jack Please note: All outputs are located inside the casing unless specified. |
| Operating temperature | -15 to +70 °C |
| Power Supply | 5-12V DC (supplied) |
| IP rating | IP-50 |

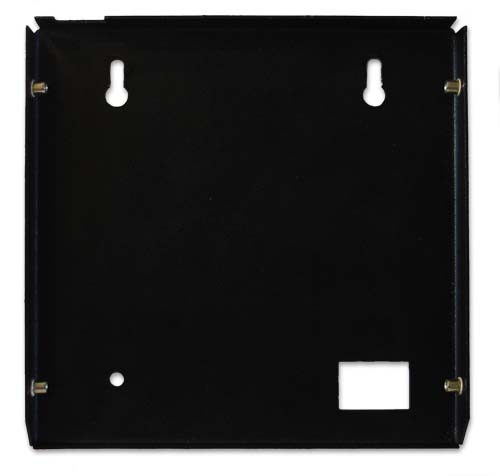

| Housing | 1mm thick epoxy coated steel plate |
| Approximate dimensions | 150mm (w) x 100mm (h) x 40mm (d) |
| Weight | 830 gram |
* The relays are rated for 12V DC. Please use a siren interface if your siren or bell is rated higher.
