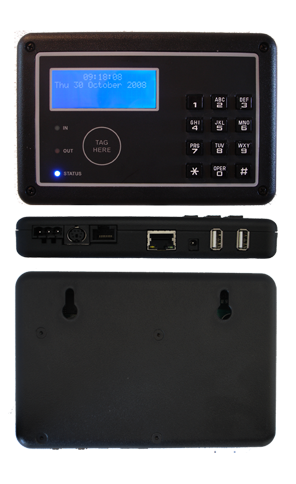

3110

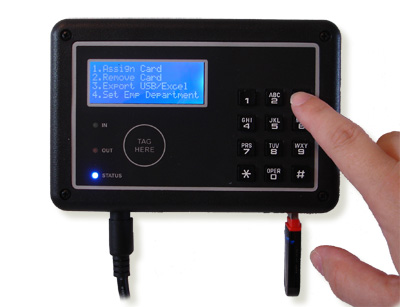

Exporting to USB

Features

  • Download clockings and hours via a USB thumb drive, via the web interface or link the clock to TNA5
  • Integrated keypad reader and proximity reader
  • A relay can trigger a siren or electronic door lock
  • Supports Time and Attendance, Access Control and Job Costing*
  • Built in support for up to three child clocks
  • Flame retardant ABS plastic casing

*Job Costing requires TNA software.



Specifications

Available readers Integrated keypad reader and proximity reader
Proximity reader specifications Read range: +/- 12cm
Supported Data Format: ASCII, Wiegand26 and Magnetic ABA Track2
Card Format: EM 4001 or compatible
Display Four line, 20 character white font on blue background PLED
Memory Stores up to 10 000 clockings
Communications TCP/IP 10/100 Mb/s
Outputs Siren relay*
RS485 remote proximity reader support
2 x USB 1.1 ports
RJ-45 Ethernet connector
6-pin MiniDIN Connector
Barrel power jack
Operating temperature -15 to +70 °C
Power Supply 5-12V DC (supplied)
IP rating IP-50
Housing Flame retardant ABS plastic
Approximate dimensions 150mm (w) x 100mm (h) x 30mm (d)
Weight 200 gram

* The relays are rated for 12V DC. Please use a siren interface if your siren or bell is rated higher.

Gallery

Click on an image to enlarge the gallery.

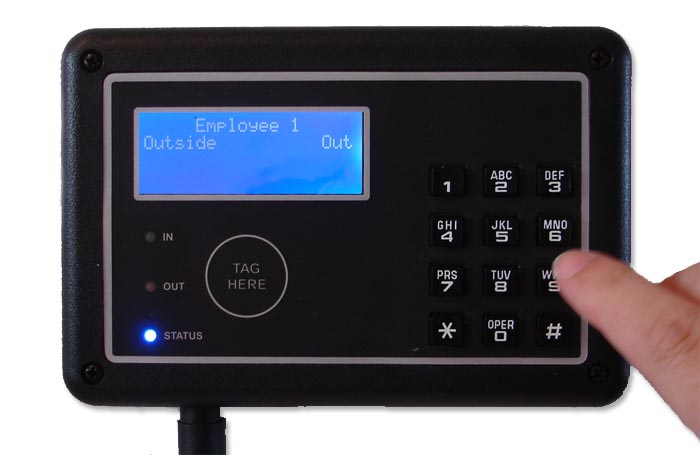

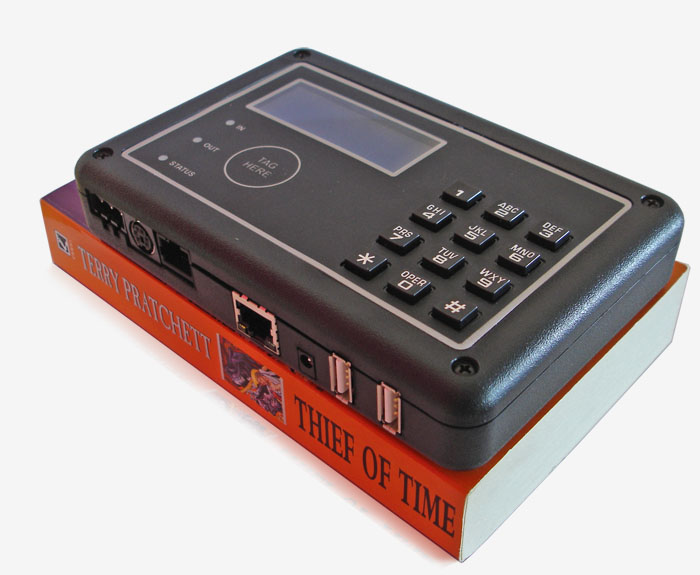

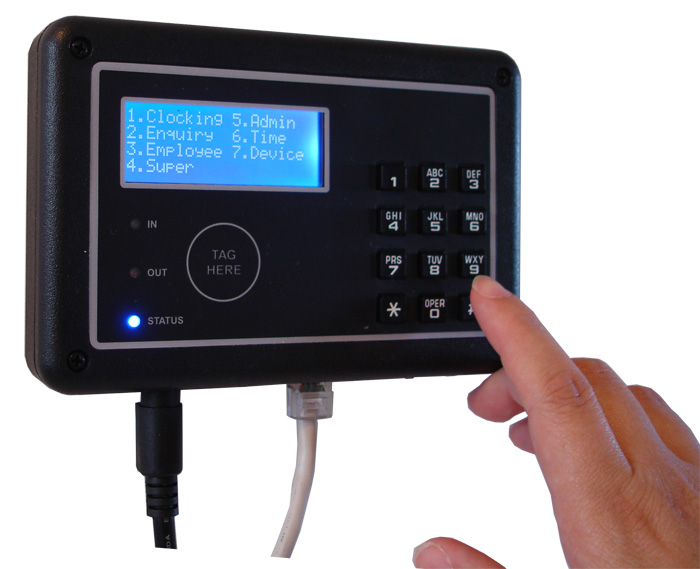

Clock Keypad Menu Smaller than a paperback
